Solar Cell Micro-Crack Inspector

Solar Cell Micro-Crack Inspector

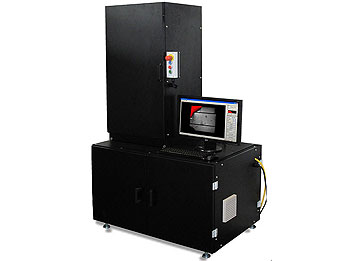

Product Name: Solar Cell Micro-Crack Inspector
Product Serial: EL-CT01A
Amount:
DESCRIPTION

  5”Mono        6”Poly           6”Mono          6”Poly
                                                                    (3 bars)

Key Features:
□ Fast adjustment for 5” and 6” cells
□ Auto cell position alignment
□ Software-controlled I/V input
□ Auto pin up/ down contact
□ High speed imaging time
□ Auto fine tune EL image
□ Auto calculate % of dark area
□ Auto mark dark area in red
□ Arrow mark and save to file
□ Support Barcode system database
□ Save your comment to file

Why do we need solar cell micro-crack inspector:
Most power-lose of PV panel is caused by the internal cell crack. The EL-CT01A  is  used
to take the EL image of solar cell. By reviewing the EL image, user can judge the cell
quality as easy as looking at a X-ray picture.



     Auto input DC current                           Good  cell                       Defect Cell

  →

System Specifications
Model Number: EL-CT01A

Application Cell quality inspection in RD or QA Lab We listen to your demand:
We are listening to your demand
and customize machines to meet
your various requirements. Please
contact us for further details.
Type Manual input, Auto alignment and contact
Max Test Area 200×200 mm(Adjustable)
Max resolution 1392×1040 pixels
Dimensions Approx 1.7 (L) ×0.9(D) ×1.8(H)m
Weight Approx 120 Kg
Power 110V or 220V,1500W
Hardware/
Mechinaical
Components
EL Camera ×1
Customerized lens and filter lens × 1
DC power supply ×1(50V/10A)
PC system ×1 (with 22” Full HD LCD)
Machine body×1
Contact parts for 5” cells ×1, and 6” cells × 1
Standard
software
Mutli UI (Engineering Mode, Operation Mode)
Save serial number as file name by barcode reader.
Save test date or comments in EL picture.
Add arrow-mark to marked defect area
Enhanced high sensitivity control
Enhanced back-ground noise reduction
Remote control service via internet.
Option
Software
Software Controlled IV Input.
Save pictures to file server.
Mark dark area in red.
