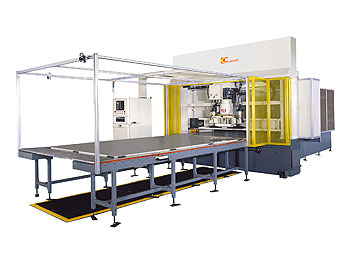

Screen Mat Cutting System

Screen Mat Cutting System
Product Name: NC-40
Product Serial: NC-40
  • 40 metric tons.
  • Motorized 4 post mechanical stops.
  • Special cutting tool holding device and sheet presser for various die widths.
  • Safety mat on the sideway for loading die in the middle of the cutting area.
  • Motorized incremental sliding table.
  • Air jets and conveyor to take off waste.
  • Optional Chinup Windows version Screen Mat software is available.
Model NC-40
Cutting Force 40 tons
Cutting Stroke 130 mm
Open Daylight 30 – 160 mm
Main Motor 5 HP
Traverse Speed 1000 mm/sec.
Down Speed 145 mm/sec.
Up Speed 133 mm/sec.
Cutting Head Size 500 x 500mm or more
Machine Bed 500D x 2100W mm or more

◎The above are the basic standard specifications. Special specifications are available upon request.
◎Dimensions and weights are for main machine body only without feeder.
◎Open daylight is measured from beam to bed, effective open daylight need to deduct thickness of die, cutting pad and feeder.
