Motorized Incremental Feed System

Motorized Incremental Feed System

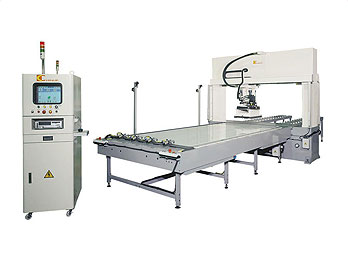

Product Name: NC-40T
Product Serial: NC-40T
  • 40 metric tons.
  • Manual 4 post mechanical stops.
  • 360 degree rotating head.
  • Punch slug box under head.
  • Motorized incremental feed system with a pneumatic pad clamping device.
  • Laser projector for material loading position.
Model NC-40
Cutting Force 40 tons
Cutting Stroke 130 mm
Open Daylight 30 – 160 mm
Main Motor 5 HP
Traverse Speed 1000 mm/sec.
Down Speed 145 mm/sec.
Up Speed 133 mm/sec.
Cutting Head Size 500 x 500mm or more
Machine Bed 500D x 2100W mm or more

◎The above are the basic standard specifications. Special specifications are available upon request.
◎Dimensions and weights are for main machine body only without feeder.
◎Open daylight is measured from beam to bed, effective open daylight need to deduct thickness of die, cutting pad and feeder.
