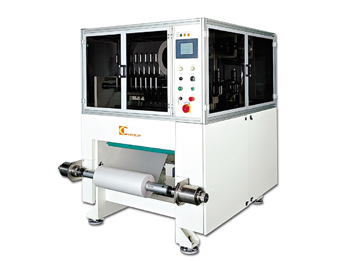

Product Name: CT-700RS
Product Serial: CT-700RS
|
|
 DESCRIPTION |
- CT-700's Individual Controls and Adjustable Speed Provide Increased Accuracy and Higher Productivity.
- CT-700 Magnetic Tape Layer features individual control of the heat and pressure for each roller, enabling precision fine-tuning to maintain the highest quality production. Operating speed is adjustable for different overlay material with a suggested operating speed of 5 – 7 m/min. and a maximum speed of 11m/min. The air-shaft single-roll overlay material stand features adjustable tension control and lateral adjustable capability.
- A touch-screen operator interface with machine dialogue and self-diagnostic trouble shooting makes the CT-700 easy to operate. Interlocked safety guards with a safety circuit ensure a totally safe operating environment.
|
| SPECIFICATION |
| Model No. |
CT-700RS |
CT-700RR |
CT-700SS |
| Overlay Type |
Roll to sheet |
Roll to roll |
Sheet |
| Overlay Width |
250 ~ 700mm |
250 ~ 700mm |
250 ~ 700mm |
| Overlay Thickness |
0.04 ~ 0.20mm |
0.04 ~ 0.20mm |
0.30 ~ 0.80mm |
| Overlay Diameter |
500mm |
500mm |
- |
| Tape Width |
6.5mm or 12.7mm |
6.5mm or 12.7mm |
6.5mm or 12.7mm |
| Tape Diameter |
300mm |
300mm |
300mm |
| Tape Tracks |
8 (option up to 11) |
8 (option up to 11) |
8 (option up to 11) |
| Tape Position Accuracy |
±0.15 mm |
±0.15 mm |
±0.15 mm |
| Operation Speed |
5 ~ 7m/min. |
5 ~ 7m/min. |
5 ~ 7m/min. |
| Machine Dimension |
2650L*1700W*1900H mm |
2400L*1700W*1900H mm |
2000L*1650W*1900H mm |
| Machine Weight |
2500kg |
2600kg |
2450kg |
|
