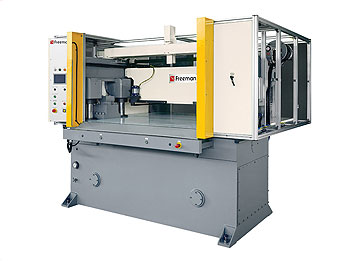

Receding Head Die-Cutting Machine RB-60

Receding Head Die-Cutting Machine RB-60
Product Name: RB-60
Product Serial: RB-60
  • Cutting Force 60 tons
  • Max. Cutting stroke 110mm
  • Open daylight 50-160mm
  • Main motor 7.5HP
  • Machine bed 900D*1600W mm
  • Effective cutting area #1 880D*1580W mm
  • Effective cutting area #2 880D*1420W mm
  • Machine dimension 2640W*2085D*1870H mm
  • Weight approx. 5000 Kgs

*Effective cutting area #1: Without die rails and pad shifter.

*Effective cutting area #2: With either die rails and pad shifter.

*The above are the basic standard specifications. Special specification and CE safety version are available upon request.
