Cutting On Belt Feed System

Cutting On Belt Feed System

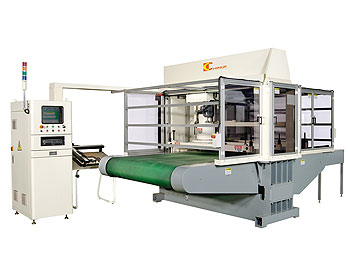

Product Name: NC-30BT
Product Serial: NC-30BT
Amount:
DESCRIPTION
  • 30 metric tons.
  • Motorized 4 post mechanical stops.
  • 360 degree rotating head.
  • X and Y-axis are driven by servo-drive ball screws to ensure positioning accuracy.
  • Cutting against belt with clamp beam feeding system.
SPECIFICATION
Model NC-25 NC-30
Cutting Force 25 tons 30 tons
Cutting Stroke 130 mm 130 mm
Open Daylight 30 – 160 mm 30 – 160 mm
Main Motor 3 HP 5 HP
Traverse Speed 1000 mm/sec. 1000 mm/sec.
Down Speed 183 mm/sec. 145 mm/sec.
Up Speed 206 mm/sec. 133 mm/sec.
Cutting Head Size 500 x 500mm or more 500 x 500mm or more
Machine Bed 500D x 2100W mm or more 500D x 2100W mm or more

◎The above are the basic standard specifications. Special specifications are available upon request.
◎Dimensions and weights are for main machine body only without feeder.
◎Open daylight is measured from beam to bed, effective open daylight need to deduct thickness of die, cutting pad and feeder.
