3-Axis Registration Cutting

3-Axis Registration Cutting

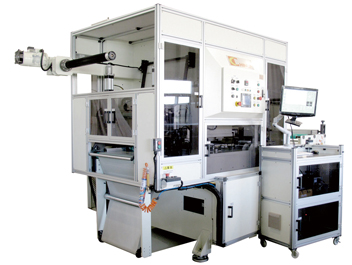

Product Name: HS-3026
Product Serial: HS-3026
Amount:
DESCRIPTION

Various insulating materials such as adhesive material, protective film, electronic shield materials, Mylar, Gasket, Copper foil, aluminum foil, foam, etc. CHINUP specializes in LCD module: Reflector film, diffuser film, silicon tape. CHINUP’s die cutting machines achieve outstanding performance to satisfy our customers’ demand.

Cutting tonnage: 30 metric tons
Bed size: 550D x 550W mm
Feeding system: In & Out pinch roll feed
Cutting surface: PET belt + hardened and ground steel plate
FEATURES
  • Single roll cantilever unwind stand
  • EPC edge tracking
  • CCD registration
  • 3 axes (X,Y,θ) servo-drive die rotating device
  • Scrap rewind stand
  • Outboard cut parts collecting tray
