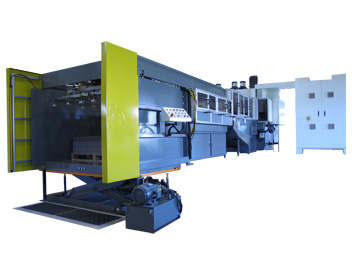

Full Head Hydraulic Die-Cutting Press For PVC Floor Tile FH-200

CHINUP’s luxury vinyl tile die cutting system is designed with the dedicated cutting system to assist our customers to product high quality luxury vinyl tile. With vast experience in cutting applications and solutions, CHINUP is capable of providing tailor-made systems to increase your production efficiency and to save your production cost. We aim to provide high quality machines to show you the value of your money. Welcome custom-made issue!

System Layout

1. Sheet auto feeder
2. Angled roller feed table.
3. Cutting machine
4. Cutting against belt feed system
5. Scrap separation and Scrap removal system
6. Auto Product stacking system
7. The cutting tool is made by Chinup (Opt.)

Welcome custom-made order, or contact with us for more details.

• Model: FH-200
• Cutting Force: 200 tons
• Cutting Stroke: 110mm
• Open Daylight: 256 mm (From machine bed to head)
• Main Motor: 15HPx2
• Machine Bed: 1600D x 2300W mm
• Effective Cutting Area: 1500D x 2100W mm

◎The above are the basic standard specifications. Special specifications are available upon request.
