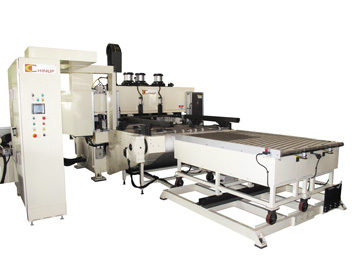

PVC Floor Tile Die Cutting Presses FH-150

PVC Floor Tile Die Cutting Presses
Product Name: PVC Floor Tile Die Cutting Presses FH-150
Product Serial: FH-150
Amount:
DESCRIPTION

The material technology is advancing and changing quickly, composites will replace natural material gradually. Floor tile commerce has already followed the trend like PVC floor tile, LVT...etc. CHINUP’s PVC floor tile die cutting system is focus on the customize requirement.

System Layout

  1. Angled roller feed table.
  2. Cutting machine
  3. Cutting against belt feed system
  4. Scrap separation and Scrap removal system
  5. The cutting tool is made by Chinup (Opt.)

Welcome custom-made order, or contact with us for more details.

SPECIFICATION
  • Model: FH-150
  • Cutting Force: 150 tons
  • Cutting Stroke: 110mm
  • Open Daylight: 308 mm (From machine bed to head)
  • Main Motor: 20HP
  • Machine Bed: 1600D x 1600W mm
  • Effective Cutting Area: 1500D x 1350W mm

◎The above are the basic standard specifications. Special specifications are available upon request.
