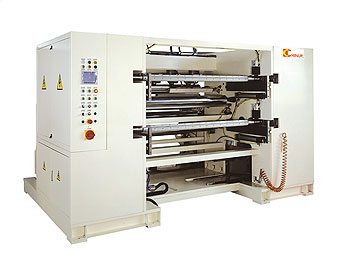

Optical Film Slitting & Rewinding Machine

Optical Film Slitting & Rewinding Machine
Product Name: GC-02
Product Serial: GC-02
Amount:
DESCRIPTION

GC-02 is capable of slitting optical film. All rollers are under extremely grinding treatment to ensure scratch free.

  • Maximum material roll diameter: 600mm.
  • Slitting width: 150–1300 mm.
  • Maximum operation speed: 60 meters per minute.
  • Motorized unwind stand with magnetic powder clutch tension control and an 3” air shaft.
  • Edge tracking device to ensure precise rewinding.
  • Precise slitting knife includes dust collecting device to ensure clean slitting edge.
  • Dynamic balance rollers with mirror finish surface to ensure scratch free for material.
  • Static eliminator.
  • Frictional air shaft is capable of controlling the tension for each rewind roll after slitting.
  • Scrap rewind stands with 3” air shafts.
