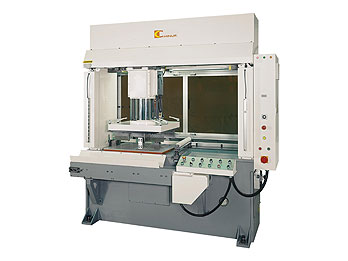

Manual Envelope Cutting Machine |
|
|
|
Product Name: EM-25, EM-30
Product Serial: EM-25, EM-30
|
|
 DESCRIPTION |
- Polypropylene cutting pad with oscillating pad shifter.
- Manual die rails under the head.
- Head-mounted pressure plate ensures consistent cutting through material stack.
- Die lubrication device.
- X-Y adjustable material side guides.
- Front and rear scrap conveyors.
|
| SPECIFICATION |
| Model No. | EM-25 | EM-30 |
| Cutting Force |
25 tons |
30 tons |
| Open Daylight(Head to Bed) |
245 mm |
245 mm |
| Cutting Stroke |
130 mm |
130 mm |
| Motor |
3 HP |
3 HP |
| Machine Bed |
500(D)x1500(W) mm |
650(D)x1750(W) mm |
| Head Size |
600(D)x600(W) mm |
650(D)x720(W) mm |
|
|
|
|
|
|
