Module Framing Machine
- Maximum size: 2000(W) x 1310(D) mm
- Minimum size: 600(W) x 300(D) mm
- Aluminum frame thickness: 50mm and 35mm. Different thickness, manual adjustment is required.
- Working height: 950mm.
- Frame locating mechanism
- Manually place frames in position.
- With sensors to sense frames, and then automatically hold frames in position (air cylinders extend).
- Glass delivery and guide mechanism
- Suction cup lifting and rotation unit
- With an assembly counter
- Polypropylene surfaces prevent damage to the frame and glass.
- Mitsubishi PLC control system.
|
 |

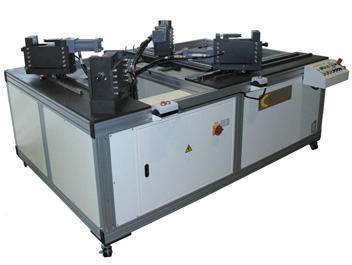

Frame Denting Machine
- Maximum module size: 2000mm wide x 1400mm deep
- Minimum module size: 1000mm wide x 550mm deep
- Aluminum frame thickness: 15 ~ 50mm. When changing to different thickness, manual adjustment is required.
- Motorized feeding rollers.
- Denting operation is driven by hydraulic cylinder.
- Polypropylene surfaces prevent damage to the frame and glass.
- Mitsubishi PLC control system.
- The Frame Denting Machine is to dent on frames to ensure firmness of frame assembly.
|
 |

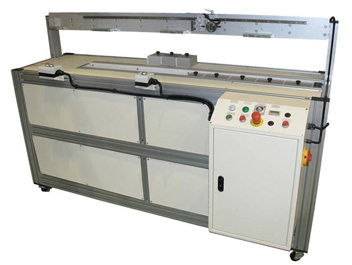

L-key installing Machine
- Key installing stroke: 300mm ~ 1400 mm
- With a counter.
- Working height: 1000mm.
- The machine is with wheels for easy movement.
- The operator manually places a key and an aluminum frame in the machine, activates the operation, and then manually removes the keyed frame out of the machine.
- The machine is with anti-tie down activated pushbuttons for easy operation.
- Polypropylene surfaces prevent damage to the frame.
- Product Efficient：<20 sec/cycle time
|
 |

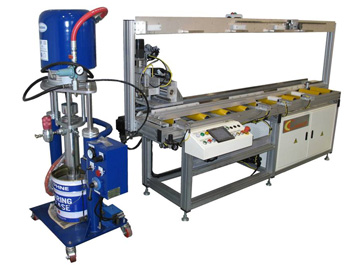

Frame Gluing Machine
- Manually place aluminum frames in the machine
- Pneumatic side guides and clamps to hold frames in position.
- 3 axis servo drive with adjustable stroke.
X axis: stroke 0 ~ 2080mm
Y axis: stroke 0 ~ 200mm
Z axis: stroke 0 ~ 60mm
- Gluing system
Automatic glue supply tank
Automatic gluing head
- Mitsubishi PLC controls
- Touch screen operator interface
- Air pressure requirement > 6 kg/cm2
|
