Edge Trimming Station

Edge Trimming Station
Product Name: Edge Trimming Station
Product Serial:
Amount:
DESCRIPTION

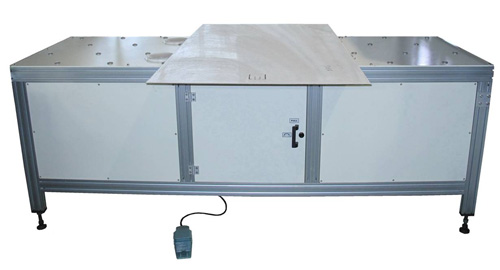

Manual Edge Trimming Station

  • Applicable glass width: Max. 2000mm
  • Two (2) powered width adjustable belts to feed glass forward.
  • Six (6) suction cups combined with lifting and rotation mechanism allow the operator standing at one position to finish the trimming job.

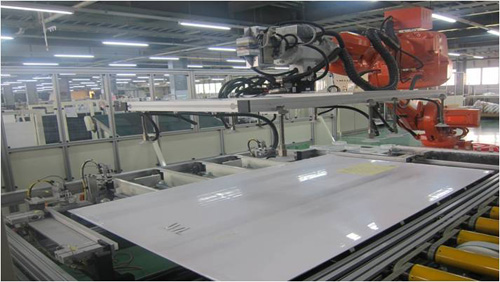

Auto Edge Trimming Station

  • Glass edge sensing table
  • Servo motor + Suction cup adjust the position of Glass
  • Glass capacitive inspecting sensor
  • ROBOT die auto changing
  • ROBOT auto trimming
  • After trimming, ROBOT automatically move glass to the conveyor
