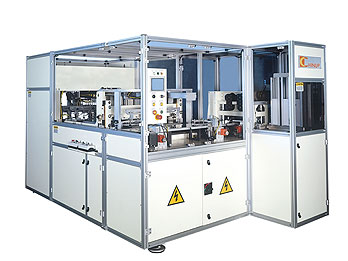

CPS High Speed Automatic Card Punching & Stacking Machine |
|
|
|
Product Name: CPS-3AG
Product Serial: CPS-3AG
|
|
 SPEC |
| Model No. |
CPS-3A |
CPS-4A |
CPS-5A |
CPS-6A |
| Cutting Force |
5 tons |
5 tons |
5 tons |
5 tons |
| Main Motor |
2 HP |
2 HP |
2 HP |
2 HP |
| Servo Motor |
400W x 2 |
400W x 2 |
400W x 2 |
400W x 2 |
| Sheet Format |
3 x 7 ~ 10 cards |
4 x 7 ~ 10 cards |
5 x 7 ~ 10 cards |
6 x 7 ~ 10 cards |
| Max. Sheet Size |
320x650mm |
390x650mm |
490x650mm |
580x650mm |
| Material Thickness |
0.30 ~ 0.84mm |
0.30 ~ 0.84mm |
0.30 ~ 0.84mm |
0.30 ~ 0.84mm |
| Card Dimension |
According to ISO standard |
According to ISO standard |
According to ISO standard |
According to ISO standard |
| Throughput |
Up to 18000 cards per hour
(layout 3 x 8) or 21000 cards
per hour (layout 3 x10) |
Up to 24000 cards per hour (layout 4 x 8) |
Up to 30000 cards per hour (layout 5 x 8) |
Up to 36000 cards per hour (layout 6 x 8) |
| Machine Dimension |
2485L x 1715W x 1785H mm |
2485L x 1935W x 1785H mm |
2485L x 2155W x 1785H mm |
2485L x 2375W x 1785H mm |
| Machine Weight |
2000 Kg |
2200 Kg |
2500 Kg |
2700 Kg |
| Compressed Air |
200 NL/min |
200 NL/min |
200 NL/min |
200 NL/min |
More are available upon request. |
| DESCRIPTION |
CPS High Speed Automatic Card Punching & Stacking Machine:
- Uses a superior mechanical-powered system that delivers automated, high-vohime cutting of stacked and printed material in any commercial format. Inboard and outboard ball-screw, servo-drive grippers ensure positioning accuracy of ±0.1mm and optical sensors with a registration mark tracking system hold cut-to-print, tolerance of ±0.1mm.
- Energy Efficient and Quiet.
- Precise Temperature Control Ensures Consistently High Punching Quality.
- Easy Operation and Maintenance.
- Chinup Plastic Card Tooling provide perfect punching quality.
|
|
|
|
|
