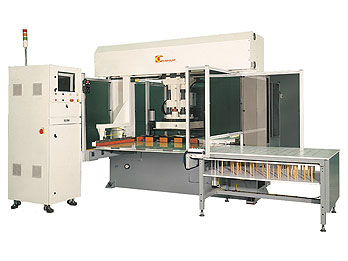

Automatic Envelope Die-Cutting Machine |
|
|
|
Product Name: EA-25
Product Serial: EA-25
|
|
 SPEC |
| Model No. |
EA-25 |
| Cutting Force |
25 tons |
| Motor |
Main: 3 HP
Servo: 1KW*2 + 2KW*1 |
| Cutting Head |
620 x 620 mm |
| Blank Size |
Max. 600 x 600 mm |
| Material Size |
Max. 950 x 1450 mm |
| Cutting Stroke |
180mm |
| Open Daylight |
114 ~ 294mm |
| Die Height |
70 ~ 100mm |
| Throughput |
Up to 1,400,000 blanks/ 8 hours depending on operation |
| Machine Dimension |
4500L x 4070W x 2395H mm |
| Machine Weight |
5200kg |
|
| DESCRIPTION |
- The 3-axes servo-motor positioning system makes the EA-25 well suited for cutting both non-printed and pre-printed envelope blanks. It can determine irregular cutting positions from a printed layout, and then create a cutting program from that layout.
- Designed for maximum productivity, combined with easy operation and maintenance.
 |
 |
Magnetic die clamping device allows dies with no die backing plates to be used.
Head mounted pressure plate to ensure a consistent cut through the material stack. |
Die lubrication to give a smooth cut edge and prolong die life. |
 |
 |
| Paper blank clamping device. Air flotation is incorporated in the lower clamps to allow minor adjustment of the paper stack. Critical for cut to print operations. |
Roller mechanism ensures material flatness during the cutting process for better position accuracy. |
 |
 |
| Pneumatic sheet removal. |
Cut part knock-out device with a cut part collecting table. |
|
|
|
|
|
