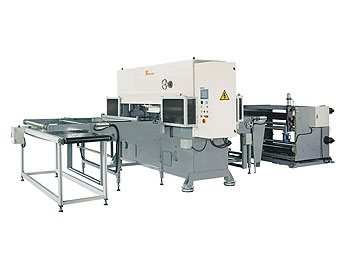

Product Name: NC-60AD
Product Serial: NC-60AD
Amount:
DESCRIPTION

CHINUP’s die cutting presses for sand papers, sandpaper sheet, sandpaper disc, sandpaper grit, Abrasive Belts, Abrasive Paper etc. The most famous sandpaper manufacturers like 3M & Saint-Gobain all choose CHINUP’s travelling head die cutting presses. Our die cutting presses are widely used for cutting sandpaper products. For high volume production, CHINUP’s CNC traveling head presses will be your best choice. Furthermore, it can be used for lots of soft and semi-rigid material.

Special design for abrasive disk cutting

  • 60 metric tons.
  • With full head machine construction.
  • Two roll tension adjustable material stand.
  • Material auto edge tracking unit.
  • An independent pinch roll feeder with lazy loop control and dancing roller to unwind the roll material.
  • Synchronized inboard and outboard clamp beam feeding system driven by air cylinders.
  • Slug box under the head.
  • Manual 4 post mechanical stops.
  • Pad shifter.
  • Touch-screen operator interface.
  • Outboard cut parts delivery conveyor.
  • Optional knockout unit is available.
SPECIFICATION
Model NC-60
Cutting Force 60 tons
Cutting Stroke 110 mm
Open Daylight 30 – 140 mm
Main Motor 7.5 HP
Traverse Speed 1000 mm/sec.
Down Speed 200 mm/sec.
Up Speed 235 mm/sec.
Cutting Head Size 500 x 500mm or more
Machine Bed 760D x 2300W mm or more

◎The above are the basic standard specifications. Special specifications are available upon request.
◎Dimensions and weights are for main machine body only without feeder.
◎Open daylight is measured from beam to bed, effective open daylight need to deduct thickness of die, cutting pad and feeder.
